XVSBN-08A (XO-Z0179) Relief Valve

The XVSBN-08A (XO-Z0179) relief valve is one of the most important pressure control valves in hydraulic systems, primarily used to control system pressure and prevent overload. When system pressure reaches the set value, the relief valve opens, diverting part of the oil flow back to the tank, maintaining pressure near the set value. It functions as a "safety valve" in hydraulic systems, protecting pumps, actuators, and piping from overpressure damage.

Features

Pressure Stability: Precisely controls system pressure with minimal fluctuation, ensuring smooth system operation
Overload Protection: Automatically opens when system pressure exceeds limit, protecting hydraulic components from damage
Multiple Configurations: Direct-acting and pilot-operated options available for different flow and pressure requirements
Fast Response: Low pressure overshoot, excellent dynamic response characteristics
Low Noise: Optimized flow path design reduces relief noise and vibration
Multiple Pressure Ranges: Various spring options covering different pressure grades

Expand All

Collapse All

Operating Principle

Relief valves are typically normally closed and installed in parallel at the hydraulic pump outlet. When system pressure is below the set value, the valve port remains closed; when pressure reaches the spring set value, the spool opens, allowing partial oil flow back to the tank, limiting further pressure increase. The balance between pressure and spring force maintains system pressure near the set value.
Typical Applications
- System Pressure Control: Setting maximum working pressure of hydraulic systems
- Overload Protection: Preventing component damage from system overpressure
- Remote Pressure Control: Remote pressure adjustment with pilot-operated relief valves
- Unloading Circuits: Solenoid-operated relief valves for system unloading
- Back Pressure Circuits: Creating back pressure in return lines for improved motion stability
- Multi-Stage Pressure Control: Multiple relief valves combined for multi-stage pressure switching
Model Designation

Type Function Operating Pressure Flow Rate Internal Leakage

XVSBN 08A 350bar Max.20L/min Max.0.75ml/min
@80% Cracking Pressure

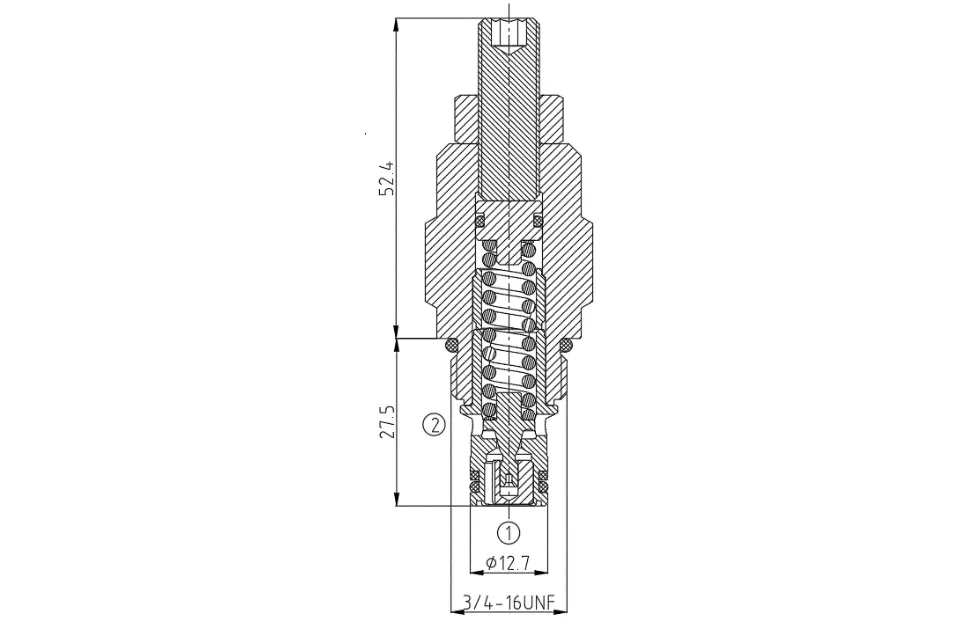

Product Outline Dimensions (in mm)

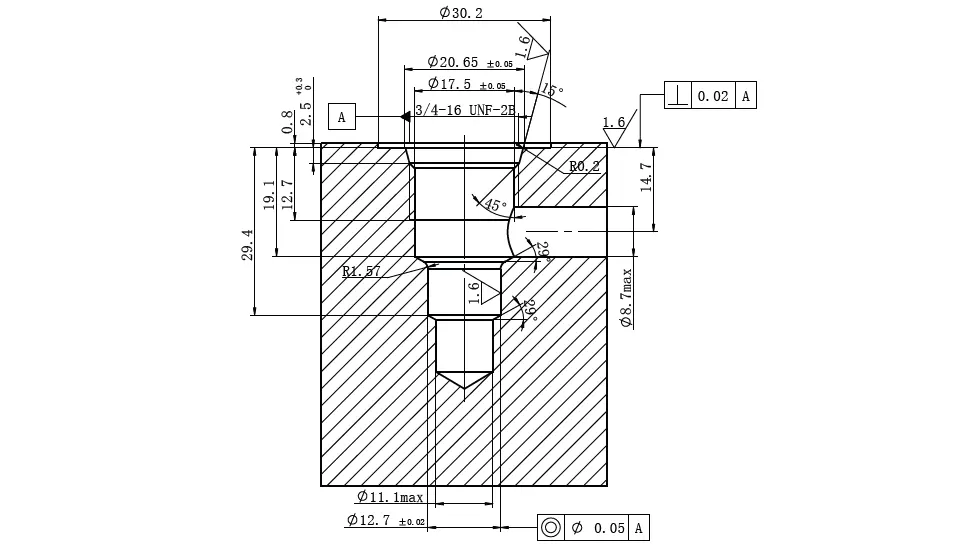

Cavity Dimentions (in mm)
Selection Note

Selection Note: Select appropriate size and pressure range based on system flow and pressure requirements. Pilot-operated types suit high-flow, high-pressure systems; direct-acting types offer faster response, suitable for small flow or safety valve applications. Contact us for selection assistance.
