XFD50-45 Series Flow Divider and Combiner Valve
The XFD50-45 series Flow Divider/Combiner Valve is a pressure-compensated hydraulic component that divides a single inlet flow into two proportional outlet flows (divider function) or combines two inlet flows into a single outlet flow (combiner function), ensuring speed synchronization of dual or multi-cylinder hydraulic systems under varying loads.
Features
- Bidirectional Synchronization: Both divider and combiner functions in one valve, ensuring synchronization during inlet and return strokes.
- Pressure Compensation: Automatically senses load changes and dynamically adjusts orifices to eliminate the effects of load differences.
- High Precision: Synchronization accuracy of ±2.0% to ±2.5% for coordinated dual-cylinder movement.
- High Pressure Rating: Maximum working pressure up to 350 bar, suitable for medium to high-pressure hydraulic systems.
- Anti-Lock Option: Select models feature anti-single-side locking function for improved system reliability.
Expand All
Collapse All
-
Typical Applications
-
Model Designation
-

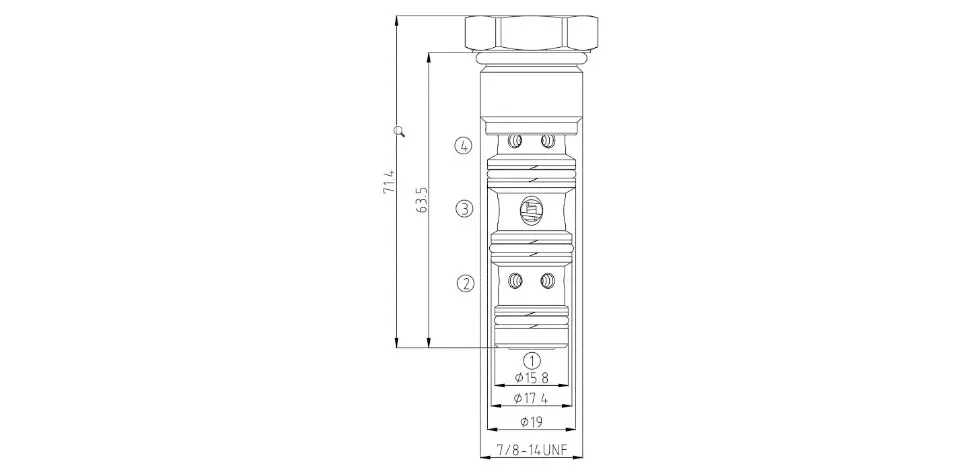

Product Outline Dimensions (in mm)
-

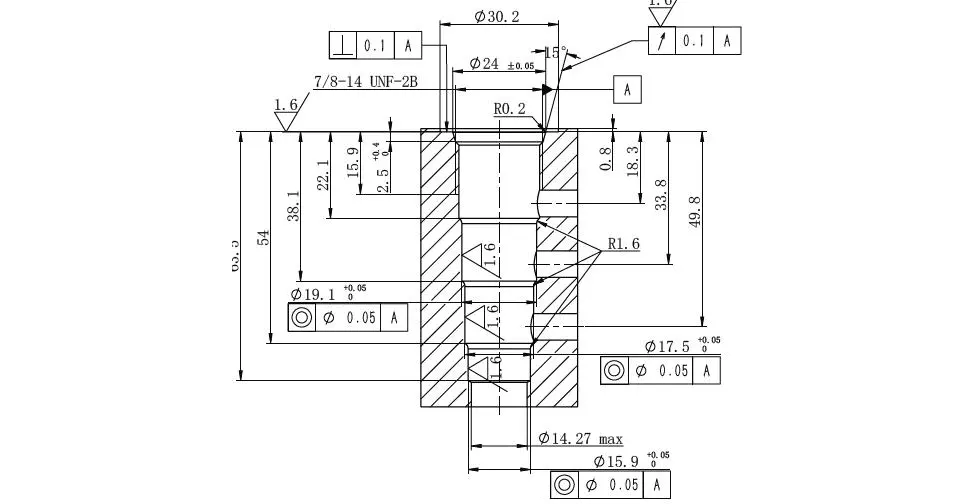

Cavity Dimentions (in mm)
