XRF08-20 Series Pressure Compensated Flow Control Valve
The XRF08-20 Series Pressure Compensated Flow Control Valve integrates a throttle valve and pressure compensator into one unit, automatically maintaining set flow rate constant to ensure stable actuator speed regardless of load fluctuations.
Features
- Constant Flow: Built-in pressure compensator automatically senses load changes, output flow fluctuation ≤ ±5%.
- Check Valve Option: Select models allow reverse free flow for bidirectional circuit requirements.
- Precise Adjustment: Infinitely adjustable handle with locking nut for accurate and secure setting.
- High Pressure Rating: Maximum working pressure 240 bar, compensation range 10-240 bar.
- Wide Flow Range: Rated flow 0.4-2 L/min, multiple specifications available.
- Sharp-Edged Orifice: Minimizes effects of oil viscosity changes on flow accuracy.
Expand All
Collapse All
-
Typical Applications
-
Model Designation
-

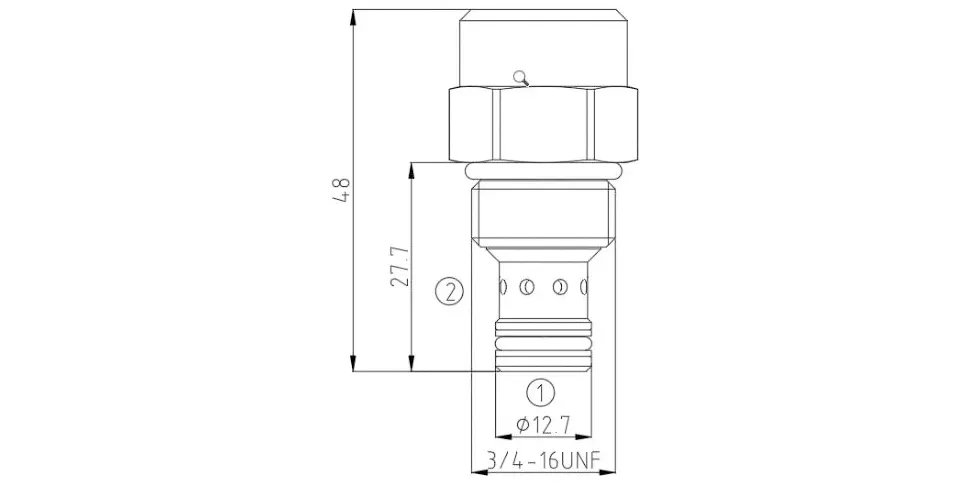

Product Outline Dimensions (in mm)
-

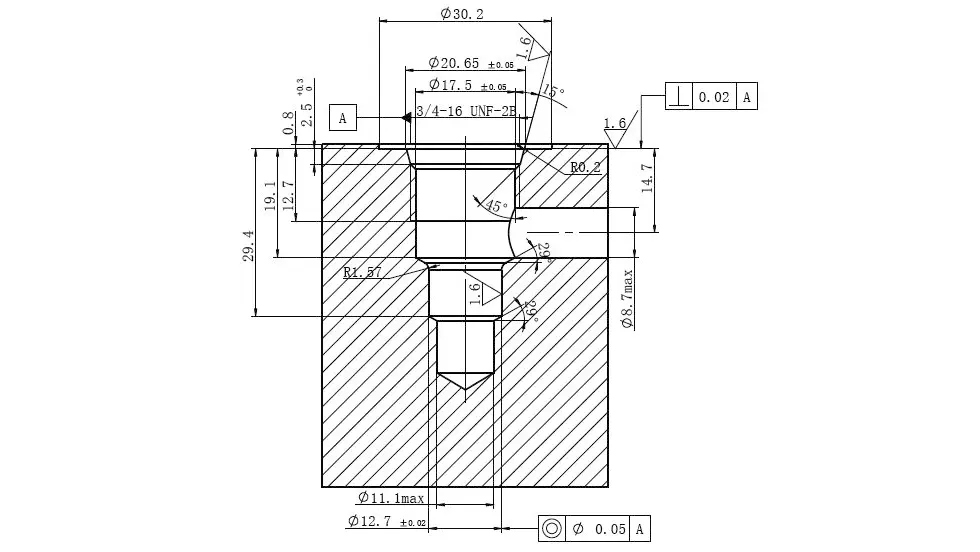

Cavity Dimentions (in mm)
