XCV Series Stainless Steel Check Valve
The XCV Series Check Valve is manufactured from solid 316 stainless steel, designed to prevent reverse flow in piping systems. It allows fluid to flow freely in the forward direction and instantly shuts off against backflow, effectively protecting upstream equipment from return flow damage.
Features
- Quiet Operation: Built-in elastomeric seat ensures tight sealing, effectively absorbs impact, and eliminates water hammer noise
- Corrosion Resistant: Solid 316 stainless steel body offers strong corrosion resistance for harsh environments like chemical and marine applications
- Multiple Cracking Pressures: Available with 1 / 5 / 10 / 15 psi spring options for precise matching to system resistance
- Flexible Installation: Choose from tube fitting, NPT thread, or weld end connections to suit different piping requirements
Expand All
Collapse All
-
Typical Applications
-
Model Designation
-

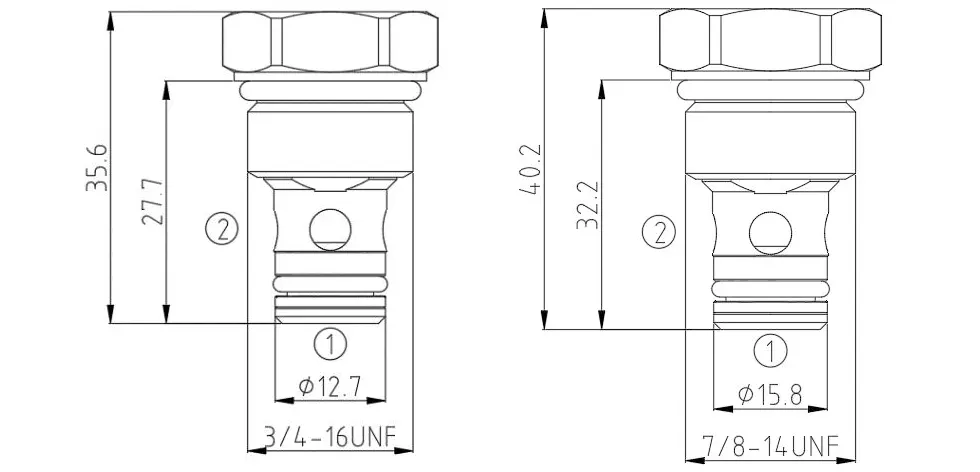

Product Outline Dimensions (in mm)
-

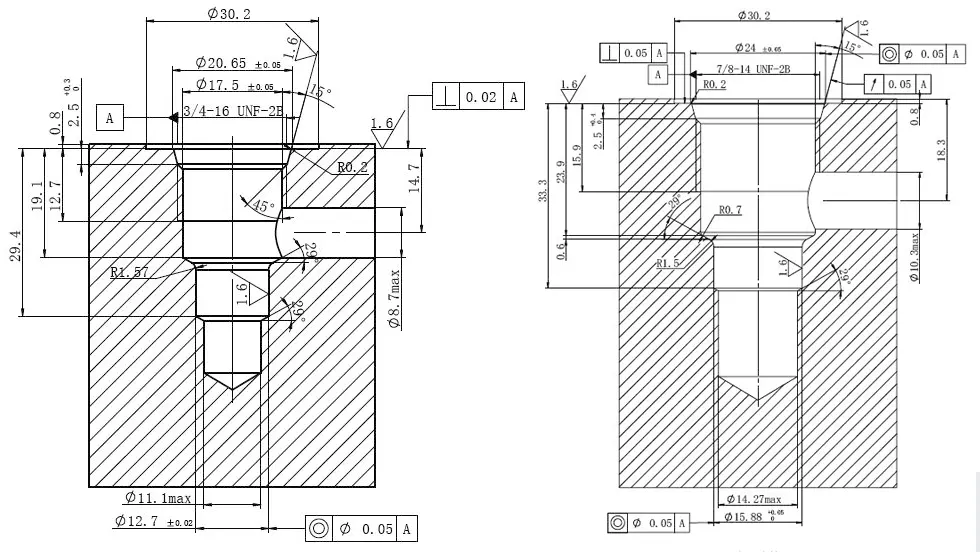

Cavity Dimentions (in mm)
