XO-Z0267 TS58-20X Proportional Pressure Relief Valve
The TS58-20X is a direct-acting, poppet-type proportional relief valve. Its regulated pressure is proportional to the input electrical current. Port 1 can be equipped with an optional 150-mesh protective screen. Back pressure at the tank port adds to the pressure setting at a 1:1 ratio.
Features
- 12V and 24V coils are standard.
- Optional waterproof E-Coils are available with an IP69K rating.
- Fits an industry-common cavity.
Expand All
Collapse All
-
Overview
-
Operation
-
Hydraulic Parameters
-
Electrical Parameters
-
Other Parameters
-

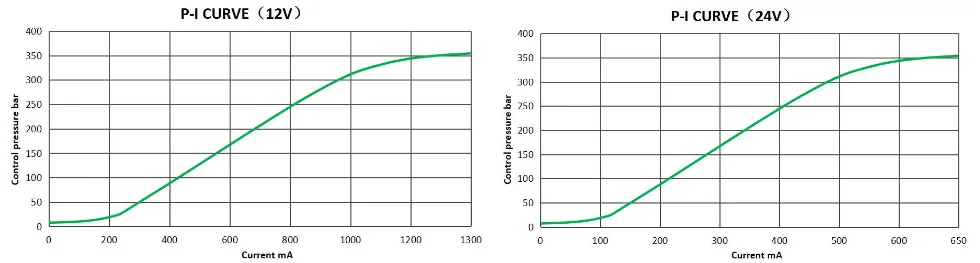

P-I (averyage characteristic)
-

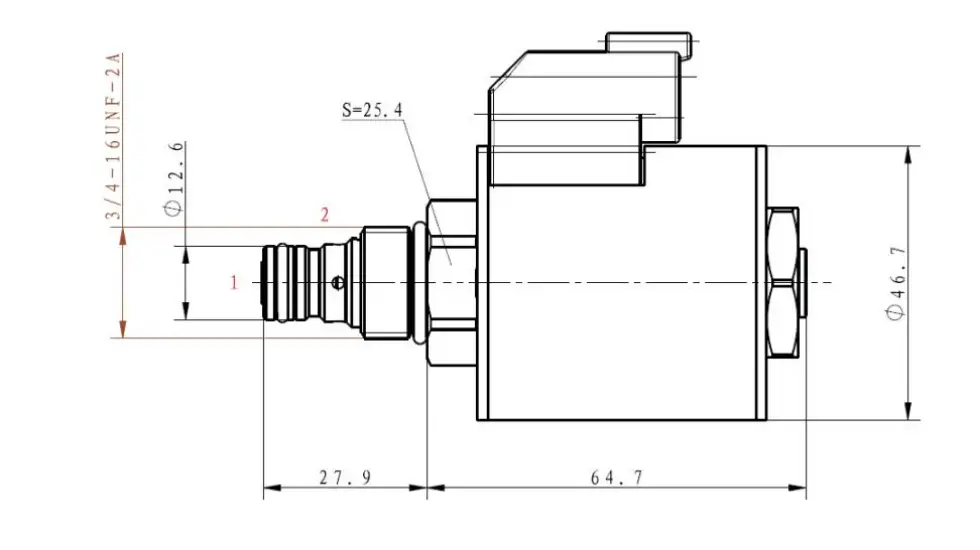

Product Outline Dimensions (in mm)
-

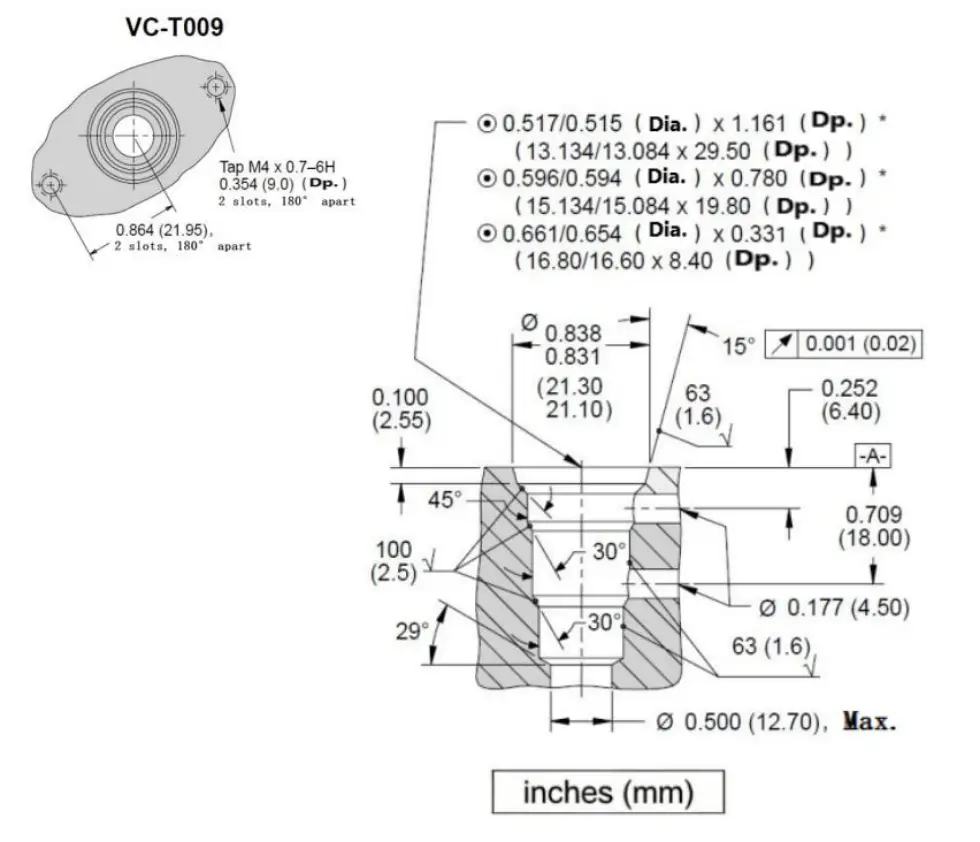

Cavity Dimentions (in mm)
