XO-Z0262 SV90-G39X Direct-Acting, 2-Position, 3-Way Directional Control Valve
This is a direct-acting, spool-type, 2-position, 3-way directional control valve designed for use with general-purpose hydraulic fluids. This valve features a drop-in, flange-mounted cartridge design for easy installation. Its integrated coil is a non-serviceable component.
Operation
- De-energized: Flow is directed from Port 2 to Port 1, while Port 3 is blocked.
- Energized: The spool shifts, opening flow from Port 3 to Port 2 and blocking Port 1.
Expand All
Collapse All
-
Overview
-
Technical Specifications
-
Hydraulic Parameters
-
Electrical Parameters
-
Other Parameters
-

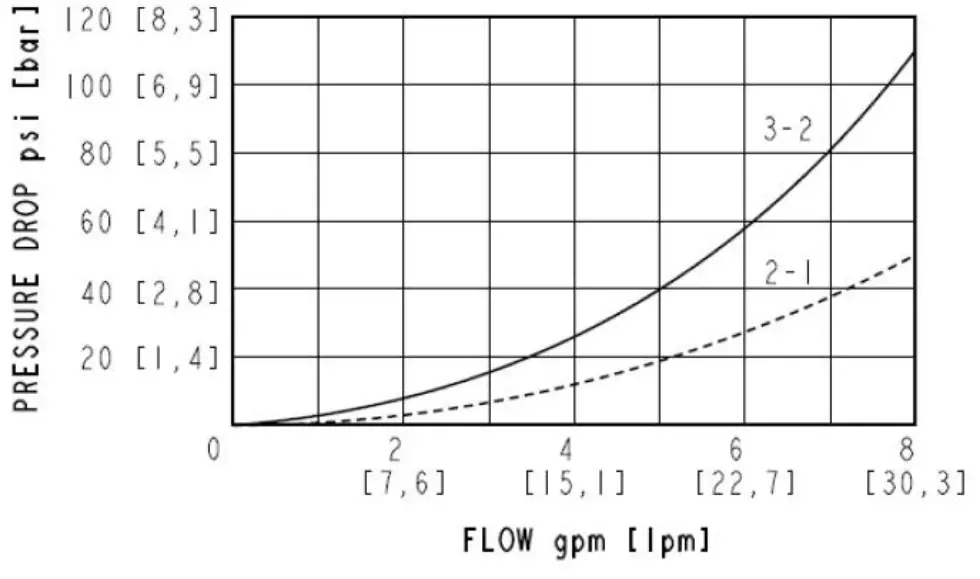

P-I (averyage characteristic)
-

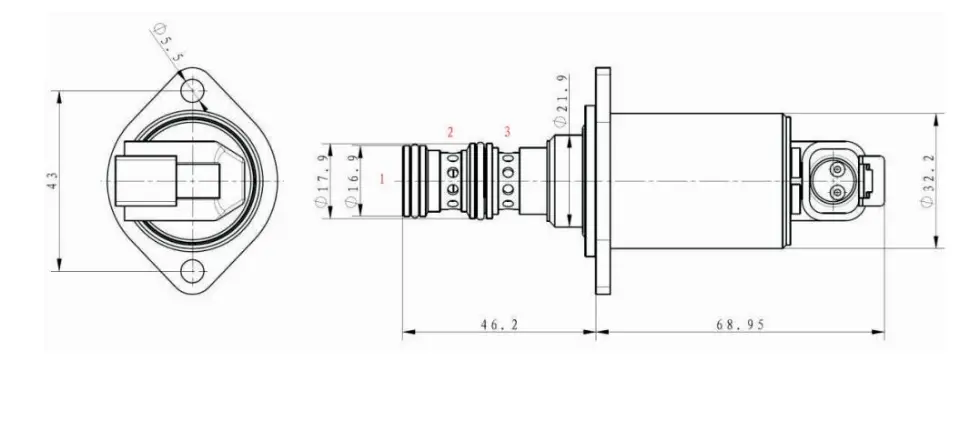

Product Outline Dimensions (in mm)
-

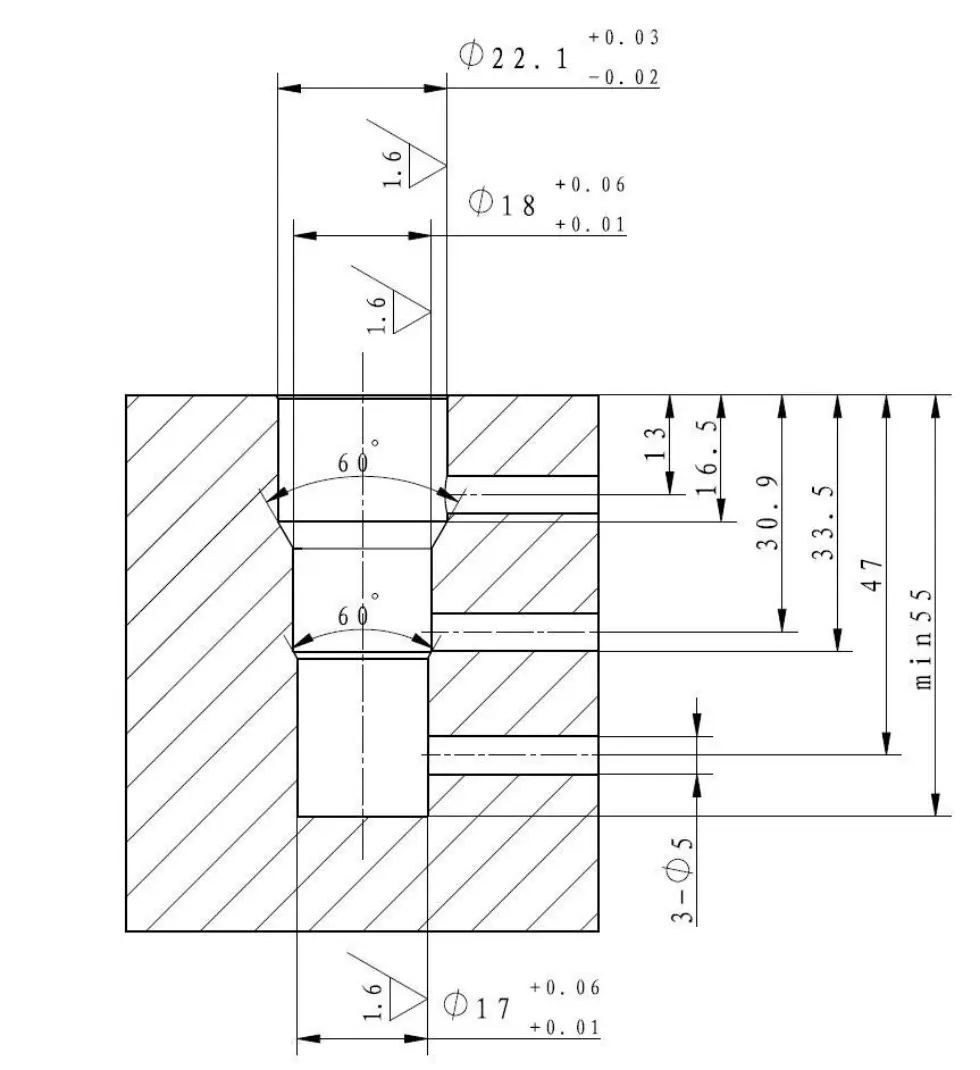

Cavity Dimentions (in mm)
