XO-Z0211 EHPR98-G38XXX Proportional Pressure Reducing/Relieving Valve
The EHPR98-G38XXX is a direct-acting, spool-type proportional pressure reducing/relieving valve. As a 3rd-generation drop-in, flange-mounted cartridge valve, it is designed for use with mineral-based or synthetic hydraulic fluids (with lubricating properties). The coil is an integral, non-serviceable component. Within the specified pressure ranges, the regulated pressure is proportional to the input electrical current.
Features
- Economical drop-in design
- Optional mounting plate
- Several regulated pressure ranges available
- Retrofit option for EHPR98-T38 models
- Quick response time
- Optional inlet screen
- Top-mounted electrical connector
- Low internal leakage
Expand All
Collapse All
-
Overview
-
Hydraulic Parameters
-
Electrical Parameters
-
Other Parameters
-

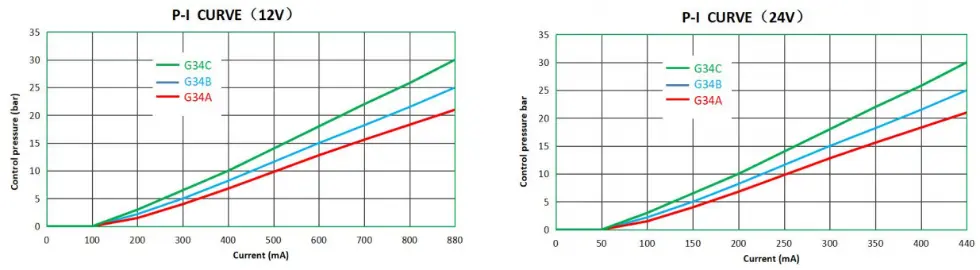

P-I (averyage characteristic)
-

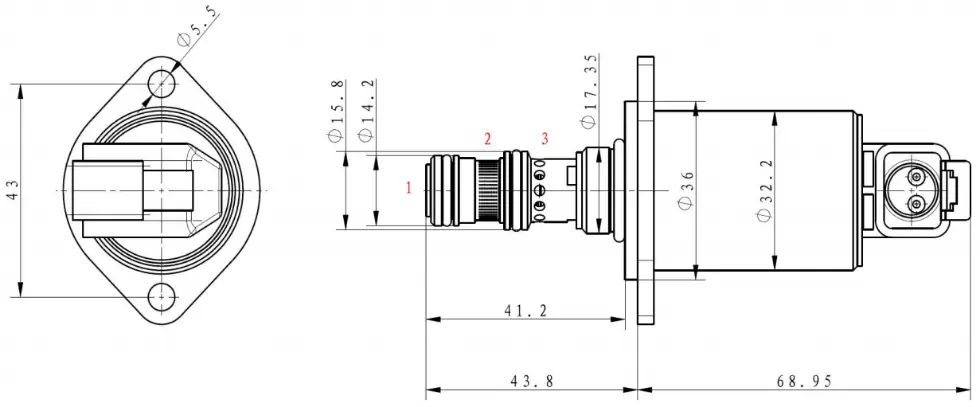

Product Outline Dimensions (in mm)
-

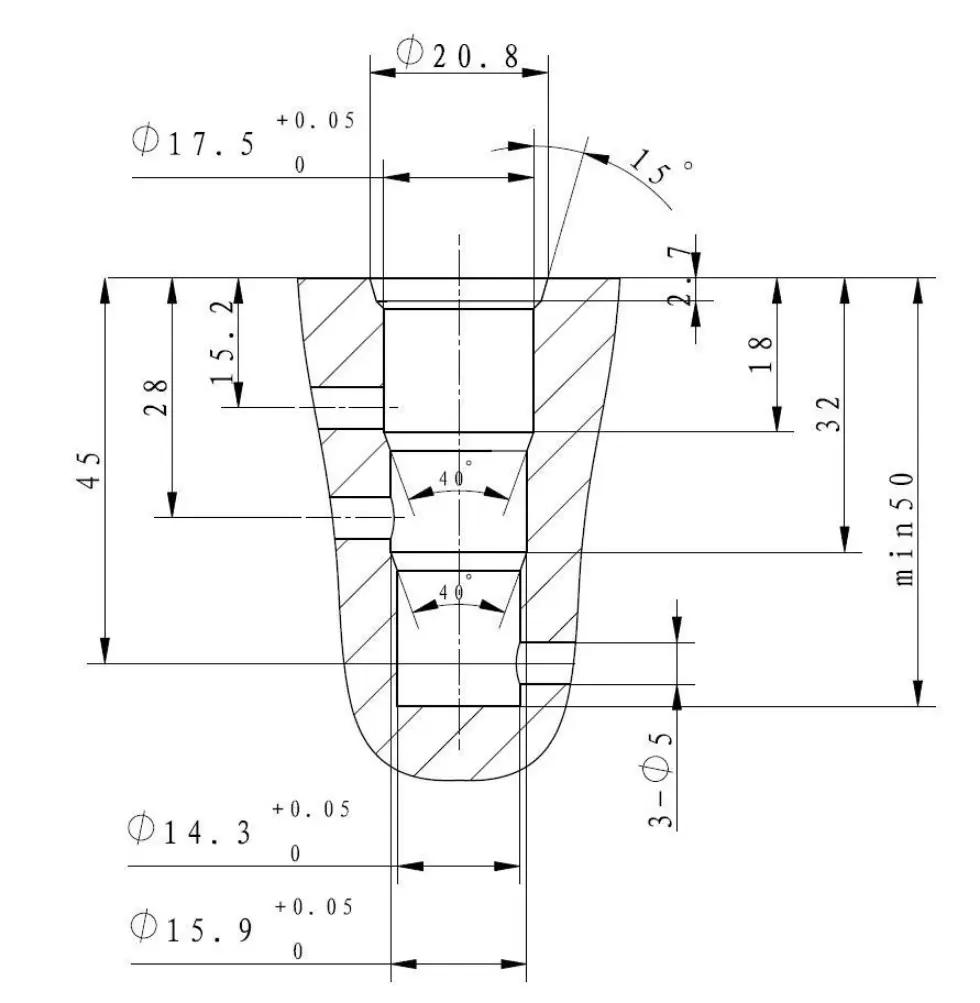

Cavity Dimentions (in mm)
-
Note
