XO-Z0218 EHPR98-T33XX Proportional Pressure Reducing/Relieving Valve
The EHPR98-T33XX is a direct-acting, spool-type proportional pressure reducing/relieving valve. This 3rd-generation valve features a drop-in, flange-mounted cartridge design and is compatible with mineral-based or synthetic hydraulic fluids (with lubricating properties). Its integrated, non-serviceable coil provides proportional control, where the regulated pressure is directly proportional to the input electrical current within the specified pressure ranges.
Features
- Economical drop-in design
- Optional mounting plate
- Compact size
- Retrofit replacement for EHPR98-T33 series
- Fast response time
- Optional inlet screen and pressure settings
- Top-mounted electrical connector
- Low internal leakage
Expand All
Collapse All
-
Overview
-
Hydraulic Parameters
-
Electrical Parameters
-
Other Parameters
-

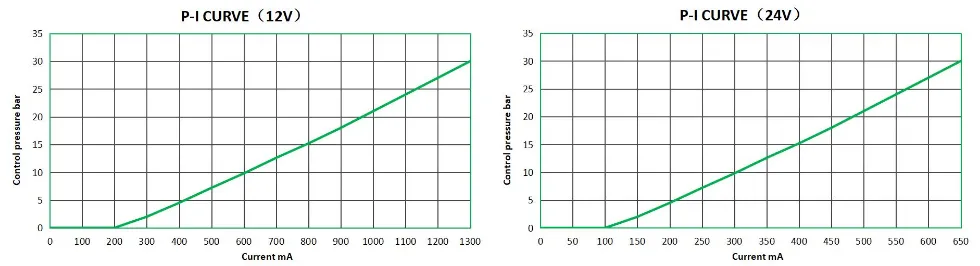

P-I (averyage characteristic)
-

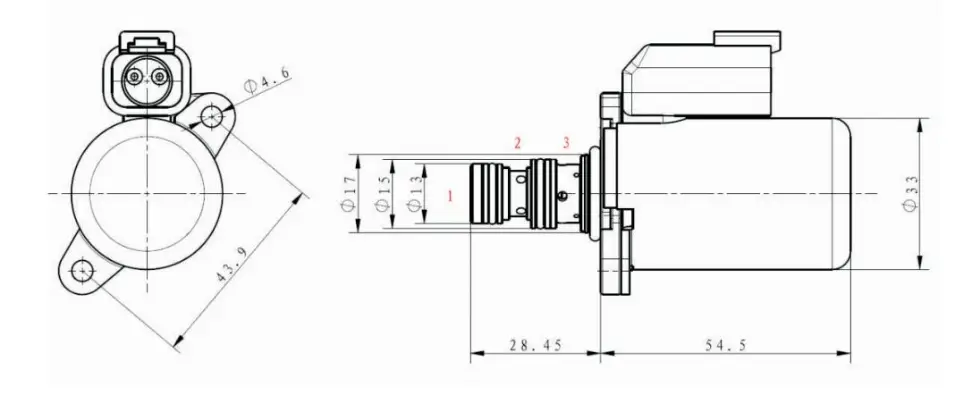

Product Outline Dimensions (in mm)
-

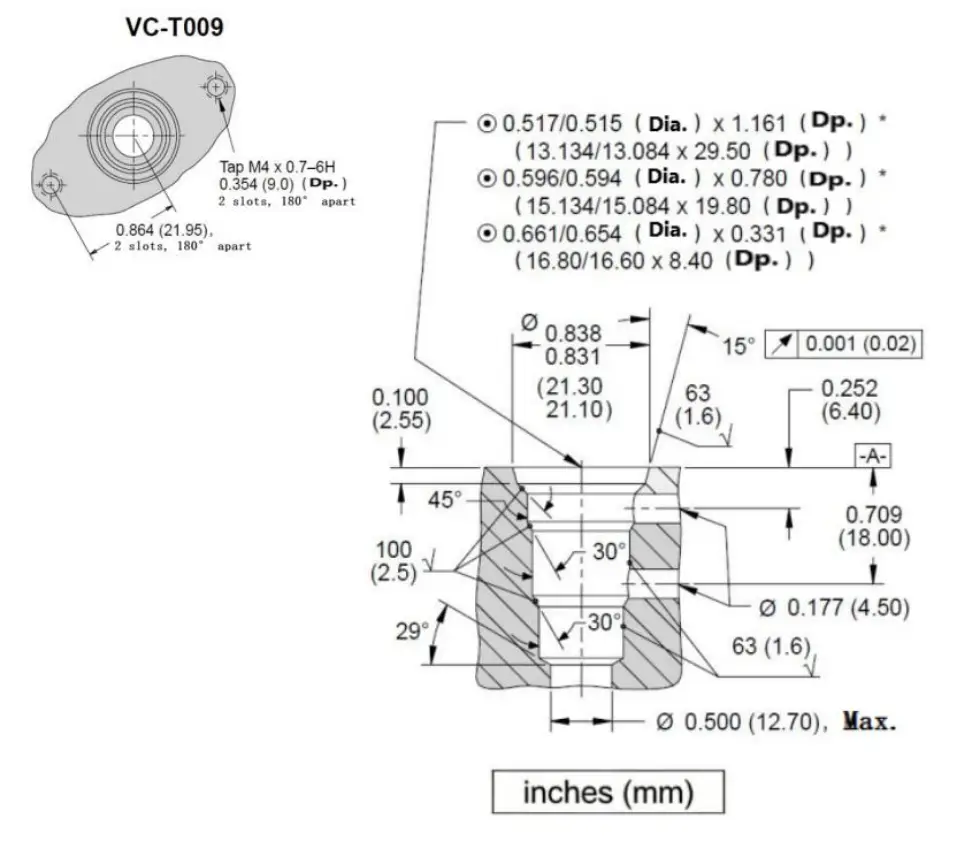

Cavity Dimentions (in mm)
