XO-Z0259 SV98-T39X 2-Position, 3-Way Directional Control Valve

This is a direct-acting, drop-in, flange-mounted, 2-position, 3-way directional control valve for general-purpose hydraulic fluids. Its integrated coil is non-serviceable.

Operation

  • De-energized: Flow path: 1→3, Port 2 blocked.
  • Energized: Flow path: 2→1, Port 3 blocked.
Expand All
Collapse All
  • Overview
    icon_minus
    icon_plus
  • Technical Specifications
    icon_minus
    icon_plus
  • Hydraulic Parameters
    icon_minus
    icon_plus
  • Electrical Parameters
    icon_minus
    icon_plus
  • Other Parameters
    icon_minus
    icon_plus
  • P-I (averyage characteristic)
    icon_minus
    icon_plus

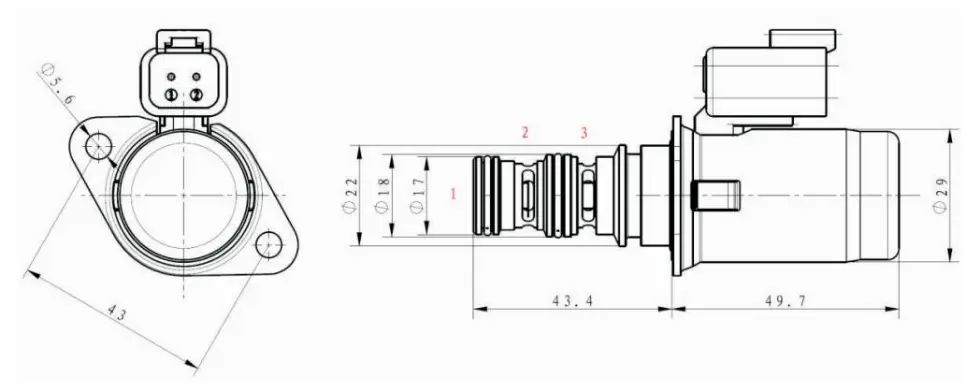

  • Product Outline Dimensions (in mm)
    icon_minus
    icon_plus

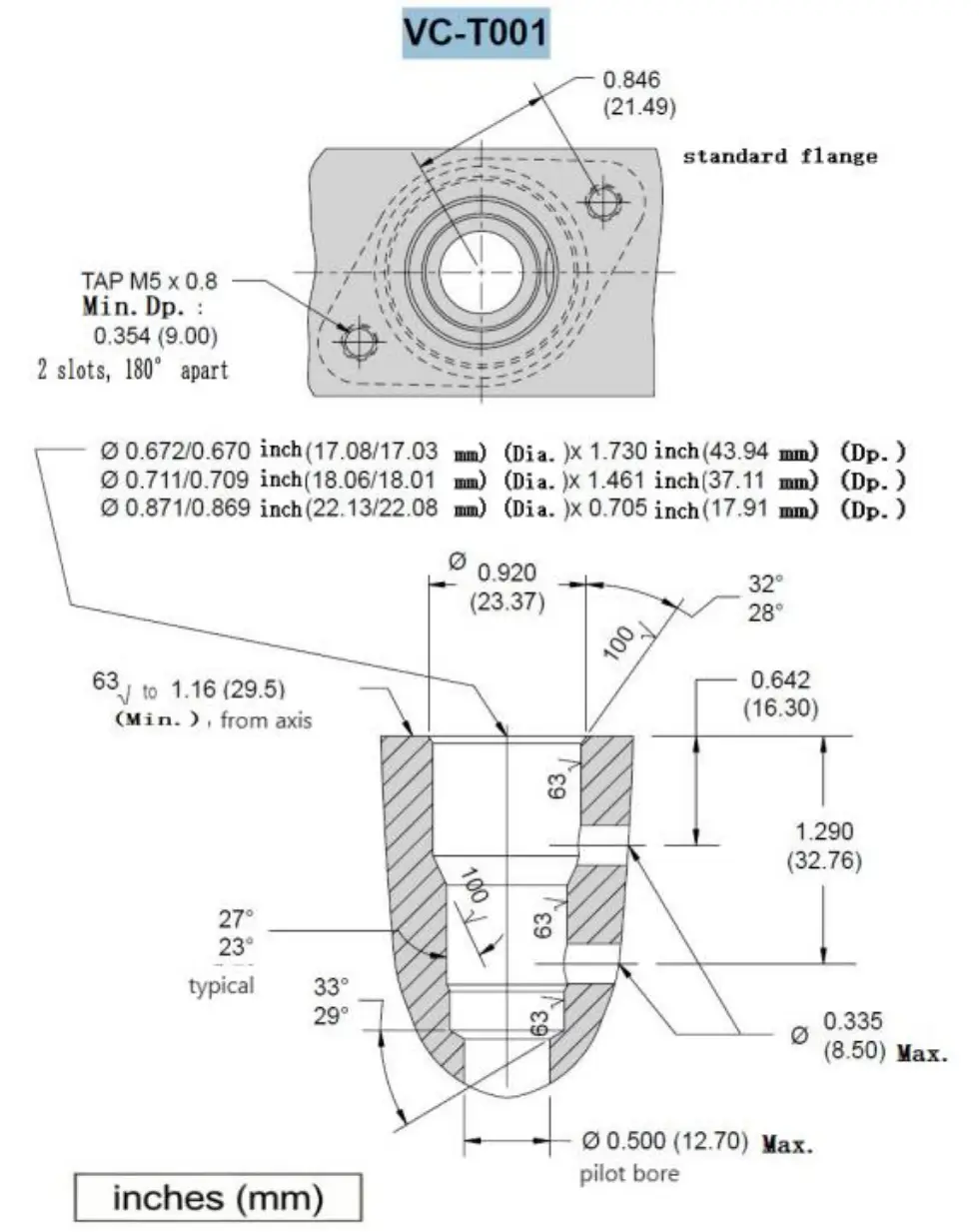

  • Cavity Dimentions (in mm)
    icon_minus
    icon_plus
Download PDF of Page icon_download
