XO-Z0221 TS90-SG34 Electro-Proportional Relief Valve
This valve is a pilot-operated spool-type relief valve. Its core feature is that the regulated pressure is inversely proportional to the input current—higher current results in a lower set pressure. It employs a drop-in flange-mounted design, with pilot flow drained to tank via port 3. The integrated coil is non-serviceable.
Features
- Economical and compact drop-in design
- Optional lock-down flange
- Various push-on electrical termination options
- Fully waterproof coil (IP69K, compliant with 960-hour salt spray test per ASTM B117)
Expand All
Collapse All
-

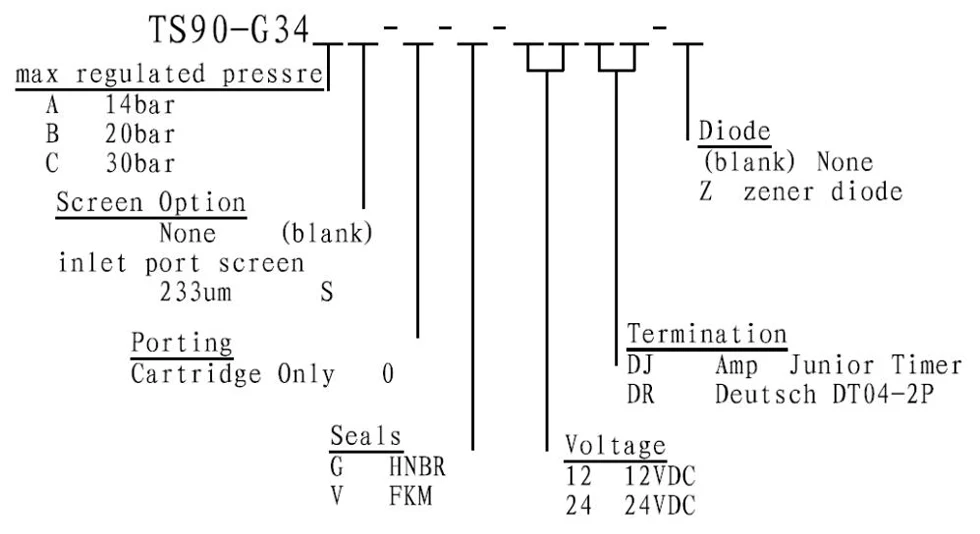

Overview
-
Principle of Operation
-
Hydraulic Parameters
-
Electrical Parameters
-
Other Parameters
-

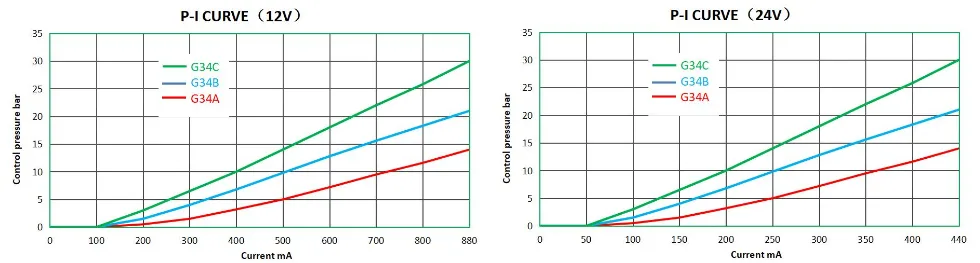

P-I (averyage characteristic)
-

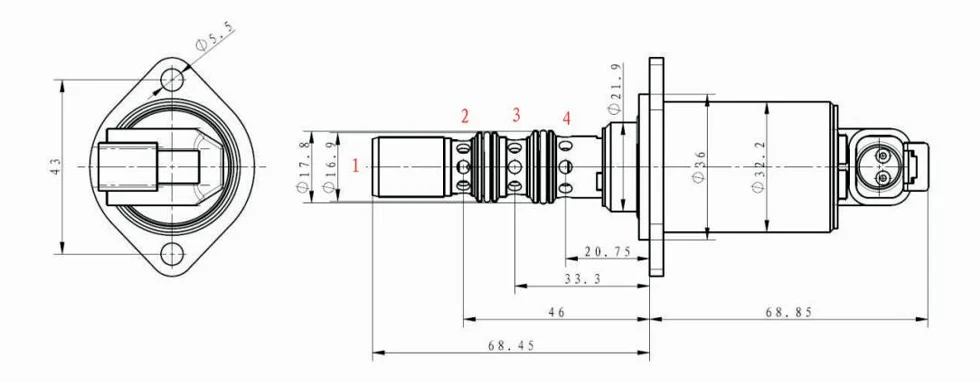

Product Outline Dimensions (in mm)
-

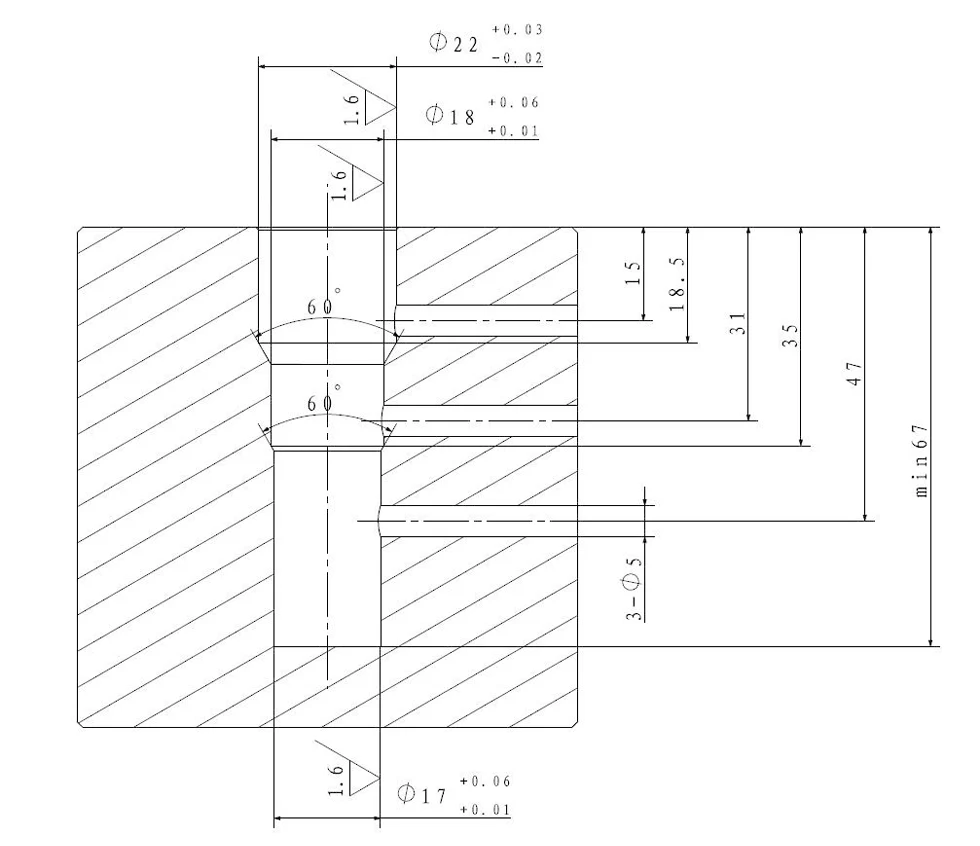

Cavity Dimentions (in mm)
