XO-Z0209 TS98-T34 Proportional Pressure Reducing/Relieving Valve
This is a pilot-operated proportional pressure reducing/relieving spool valve. Its regulated pressure is proportional to the input current (within a specified range). Back pressure at port 4 adds to the set pressure at a 1:1 ratio.
Features
- 12/24V coils
- Drop-in design (lock-down flange optional)
- Multiple termination options
- Optional 233-micron mesh screen
- Waterproof coil standard
Expand All
Collapse All
-
Overview
-
Operation
-
Hydraulic Parameters
-
Electrical Parameters
-
Other Parameters
-

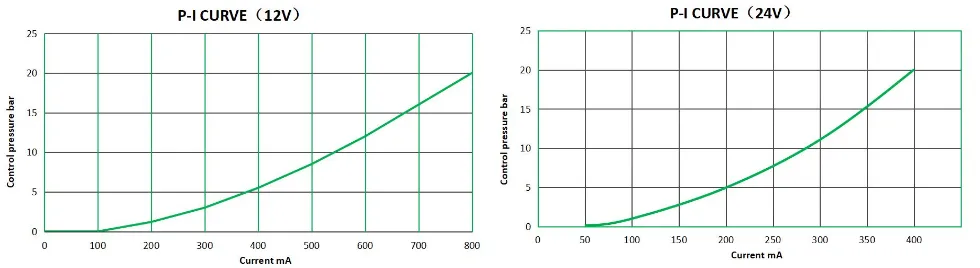

P-I (averyage characteristic)
-

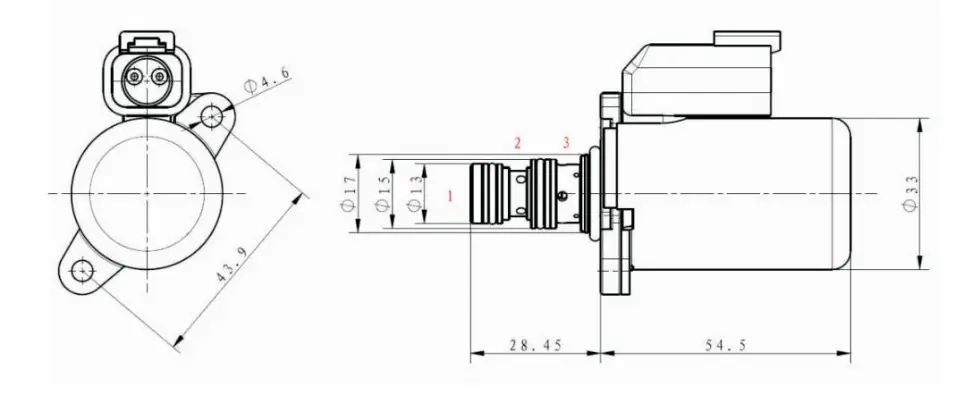

Product Outline Dimensions (in mm)
-

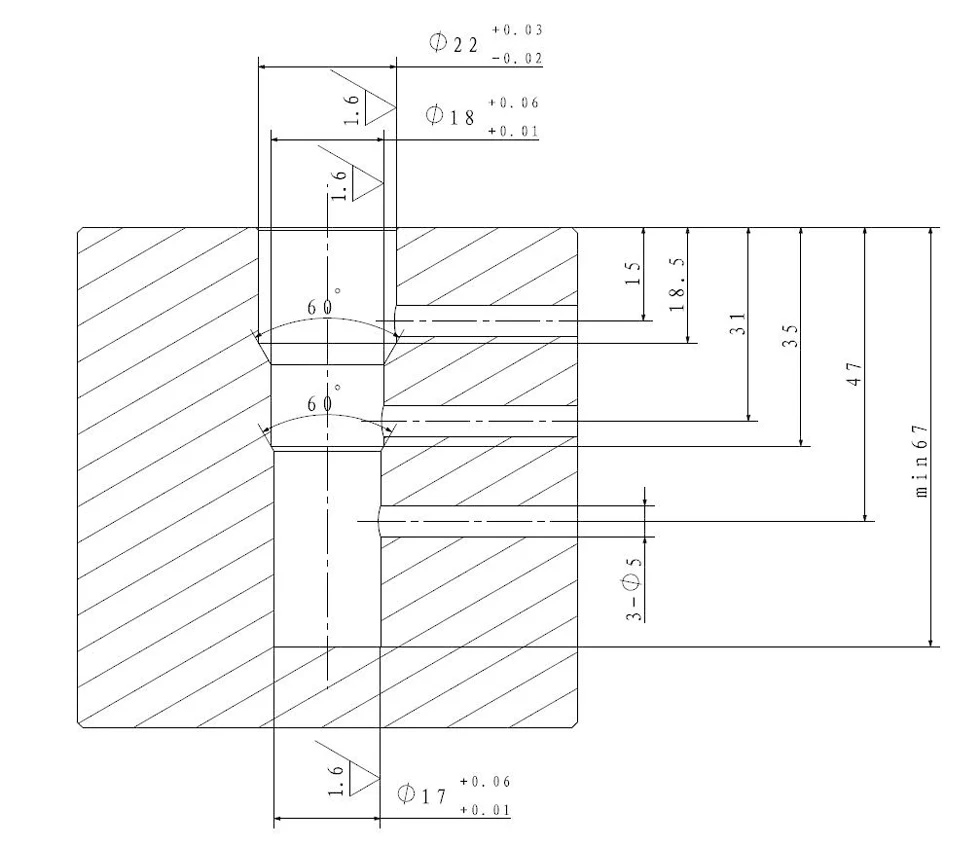

Cavity Dimentions (in mm)
