XSV10 Series3/4 Way Hydraulic Solenoid Valve – Multi-Position Control Solution
The 3/4 way hydraulic solenoid valve is the core component for achieving multi-position stopping control of actuators in hydraulic systems. Building upon the 2/4 way design, it adds a center position, giving the spool three working positions to enable cylinder stopping, floating, or pressure holding at any point. Widely used in hydraulic systems requiring precision positioning and multiple operating states.
Features
- Three Positions: Stop, move, or float as needed
- Multiple Flow Types: Standard options for various applications
- Precise Centering: Spring or hydraulic with high repeatability
- Smooth Shifting: Reduced switching shock
- High Flow: Low pressure loss, fast response
- Wet Armature: Longer life, better cooling
- Multiple Voltages: AC/DC options available
Expand All
Collapse All
-
Basic Definition
-
Common Center Types
-
Operating Principle (Type O)
-
Typical Applications
-
Model Designation
-

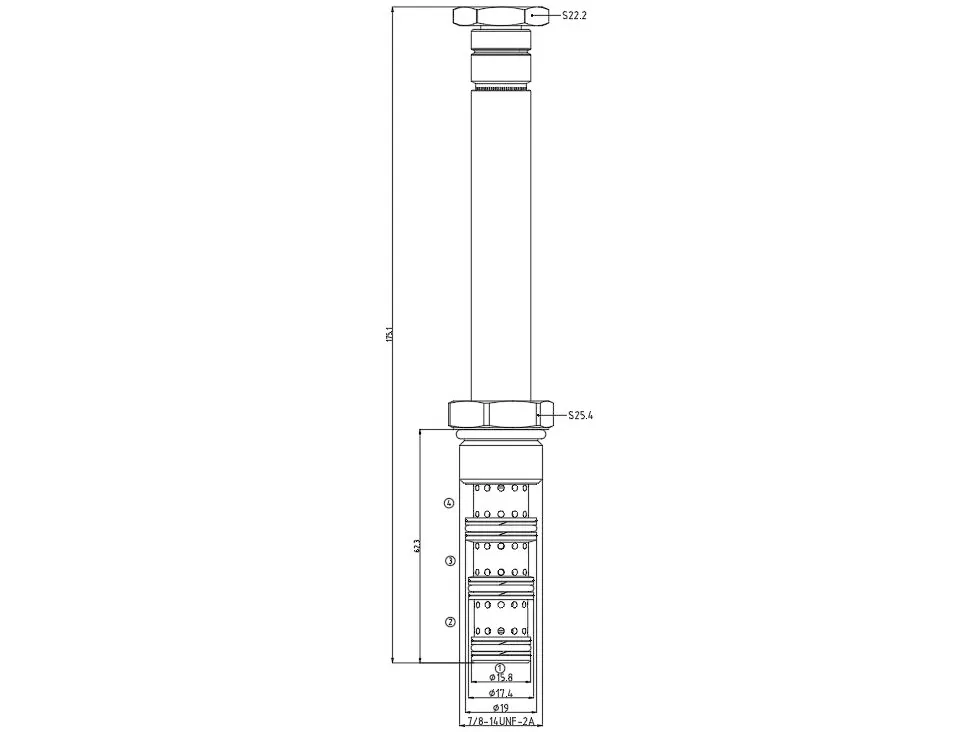

Product Outline Dimensions (in mm)
-

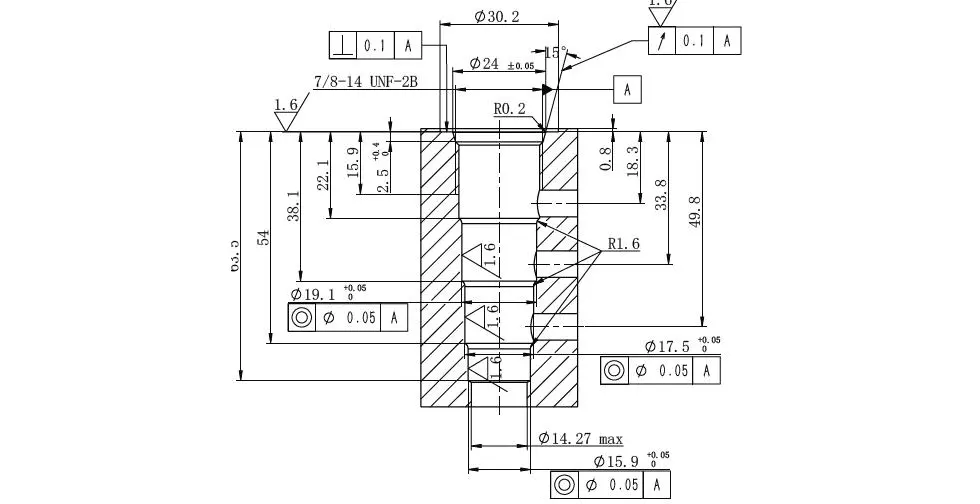

Cavity Dimentions (in mm)
-
Note
