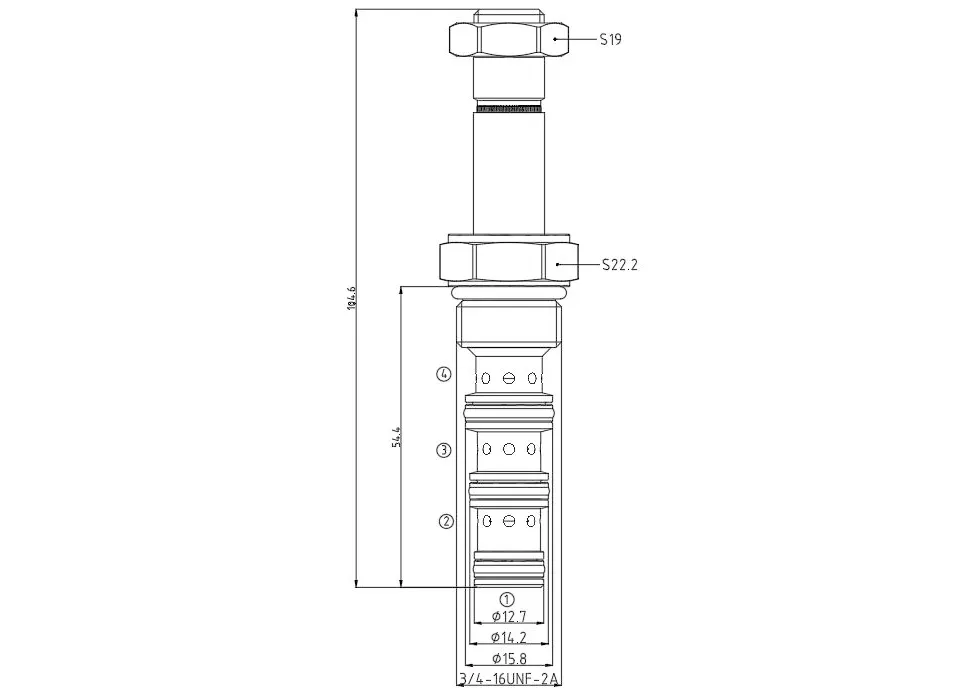

XSV08 Series 2/4 Way Hydraulic Solenoid Valve – For Double-Acting Cylinder Control

Bidirectional Control: Designed for double-acting cylinders
High Flow Capacity: Low pressure loss, fast response
High Pressure: Up to 315 bar operating pressure
Smooth Shifting: Reduced switching shock
Wet Armature: Better cooling, longer life
Multiple Voltages: AC/DC options available

A directional control valve designed to manage oil flow direction for double-acting cylinders, enabling precise reciprocating motion.

Expand All

Collapse All

Basic Definition
- 2/4 Way: Two spool positions, four ports (inlet P, working ports A/B, return T)
- Function: Switches oil path via solenoid to control cylinder extension/retraction
Operating Principle
- De-energized: P→A, B→T (cylinder extends/retracts)
- Energized: P→B, A→T (cylinder reverses)
- Reset: Spring returns after power loss
Typical Applications
- Construction Machinery: Excavator and loader cylinder control
- Plastic Machinery: Injection mold opening and closing
- Forging Equipment: Hydraulic press slide reciprocation
- Marine Machinery: Steering gear and hatch cover control
- Metallurgical Equipment: Rolling mill hydraulic systems
- Agricultural Machinery: Tractor suspension systems
