XFTWE 2K 3/2 Direct-Operated Solenoid Cartridge Valve
The XFTWE 2K series is a 3/2-way direct-acting solenoid cartridge valve for on/off and directional control of hydraulic flow. It features spring return, compact design, fast response, and is ideal for mobile and industrial hydraulic systems.
Features
- Fast response, direct-acting (no pilot oil)
- Fail-safe spring return in de-energized state
- Compact M18×1.5 cartridge for easy integration
- Robust, vibration-resistant, long service life
- Two spool options: standard C (1→3) / optional U (2→1)
Expand All
Collapse All
-
Overview
-
Typical Applications
-
Hydraulic Parameters
-
Electrical Parameters
-
Other Parameters
-

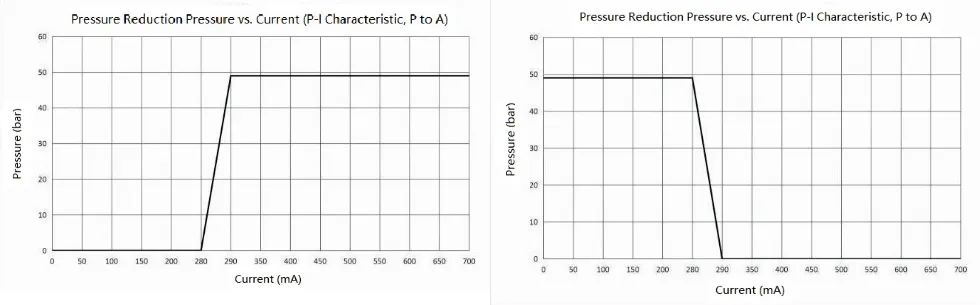

P-I (curve characteristic)
-

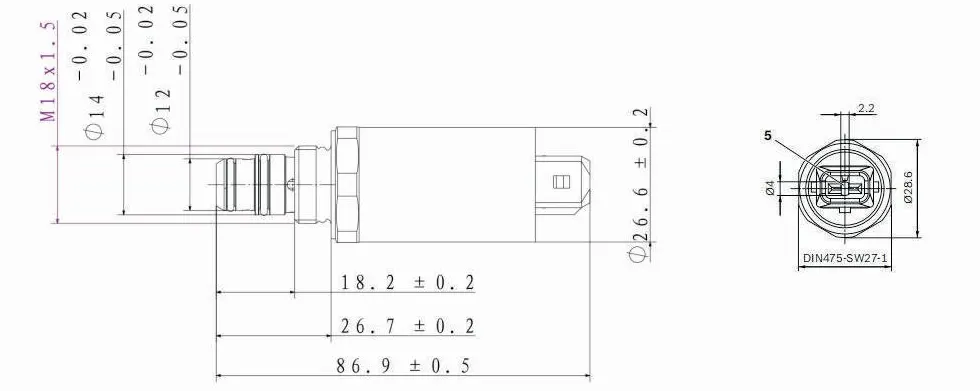

Product Outline Dimensions (in mm)
-

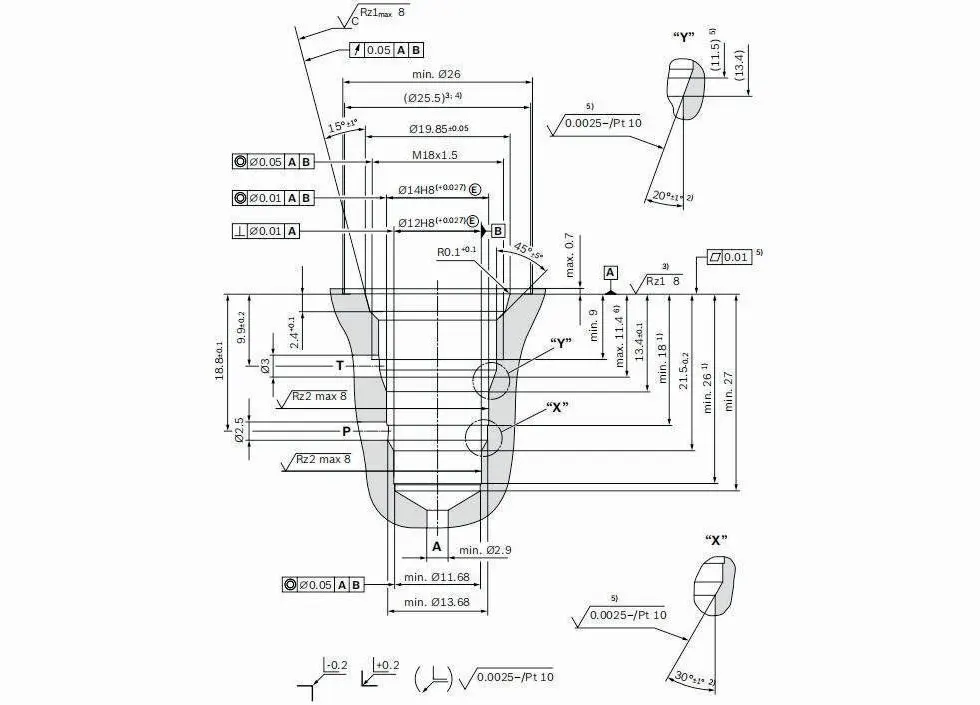

Cavity Dimentions (in mm)
