XFTDRE4K 3/2 Proportional Pressure Reducing Cartridge Valve
The XFTDRE4K series is a 3/2-way direct‑acting proportional pressure reducing valve with screw-in cartridge design. It provides continuous and precise pilot pressure control for hydraulic systems, with fast response and high stability, widely used in industrial and mobile hydraulics.
Features
- Direct-acting proportional control, fast dynamic response
- Stable output pressure, low sensitivity to inlet pressure fluctuation
- Fail-safe: automatically resets to minimum pressure when de‑energized
- Standard M18×1.5 cartridge for easy installation
- Robust, vibration-resistant, long service life
Expand All
Collapse All
-
Overview
-
Typical Applications
-
Hydraulic Parameters
-
Electrical Parameters
-
Other Parameters
-

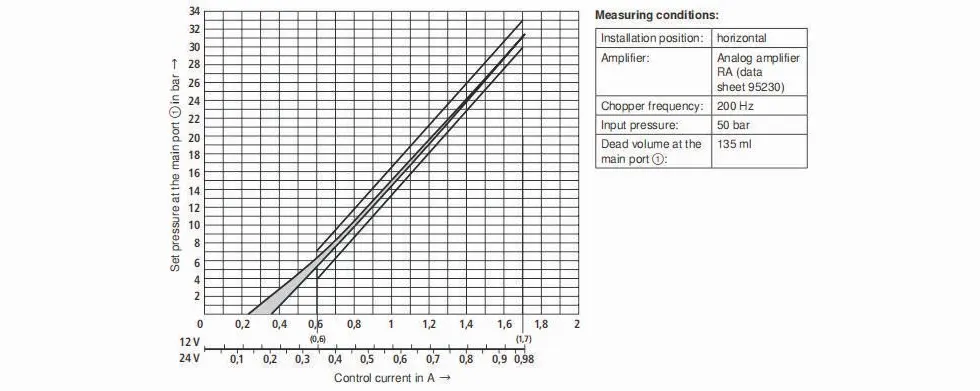

P-I (curve characteristic)
-

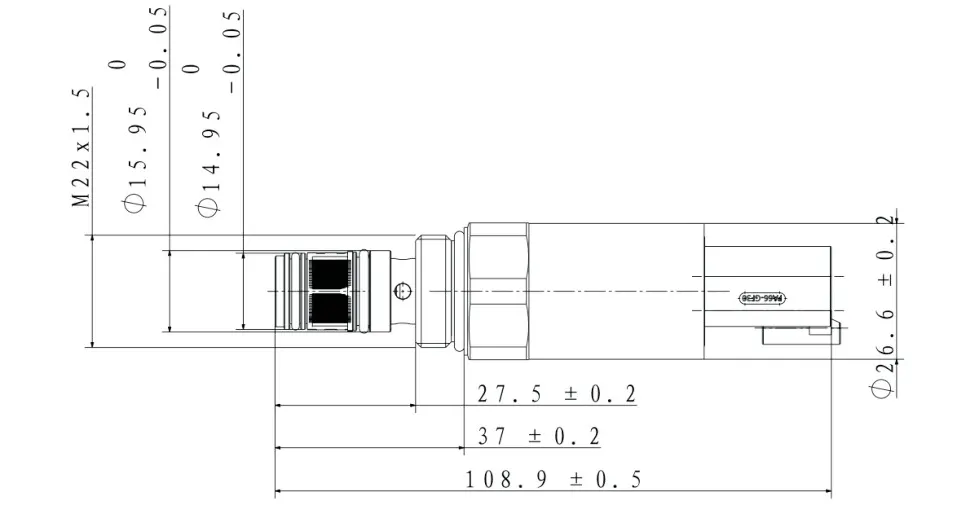

Product Outline Dimensions (in mm)
-

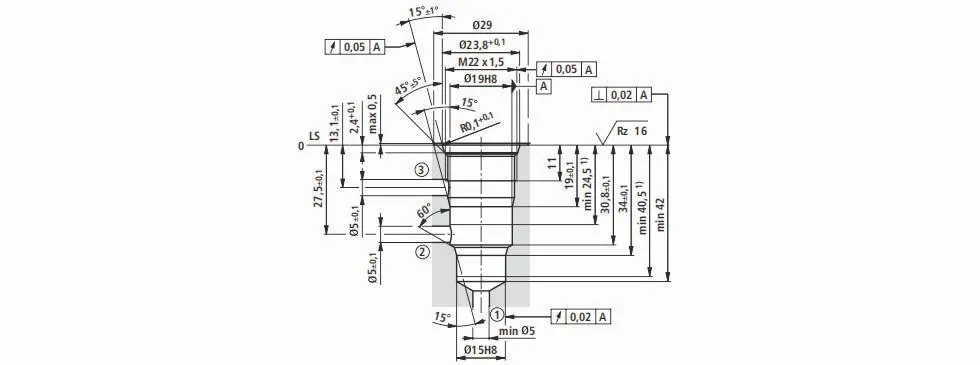

Cavity Dimentions (in mm)
