XPPCD08 Direct-Acting Proportional Pressure Control Valve
The XPPCD08 series is a direct‑acting proportional pressure control valve designed for high‑flow pilot control in mobile hydraulic systems. As a high‑capacity solution in the XPPCD series, it provides stable, precise pressure regulation with fast response, low hysteresis and ultra‑low internal leakage.
Built for harsh operating environments, the valve features high protection ratings and a wide operating temperature range, making it widely used in construction machinery, agricultural equipment and electro‑hydraulic actuator systems.
Features
- High‑flow proportional pressure control
- PWM signal control with excellent linearity
- Low hysteresis and fast response time
- Ultra‑low leakage in energized and de‑energized states
- 12V / 24V DC compatible
- High protection grade for harsh environments
- Flexible installation, compact and reliable
Expand All
Collapse All
-
Overview
-
Typical Applications
-
Hydraulic Parameters
-
Electrical Parameters
-

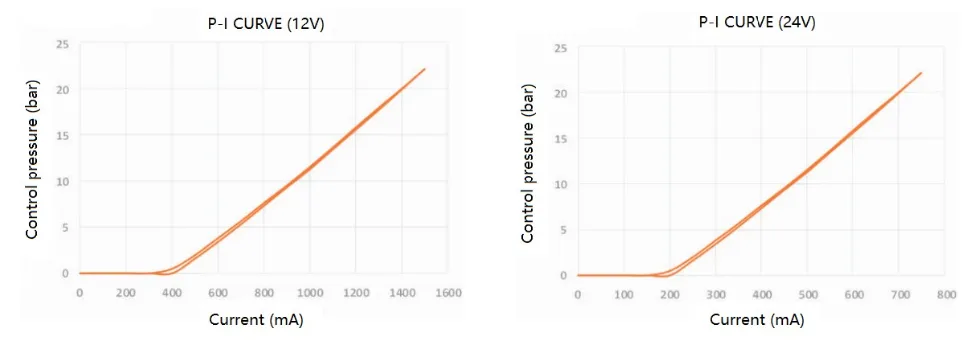

P-I (averyage characteristic)
-

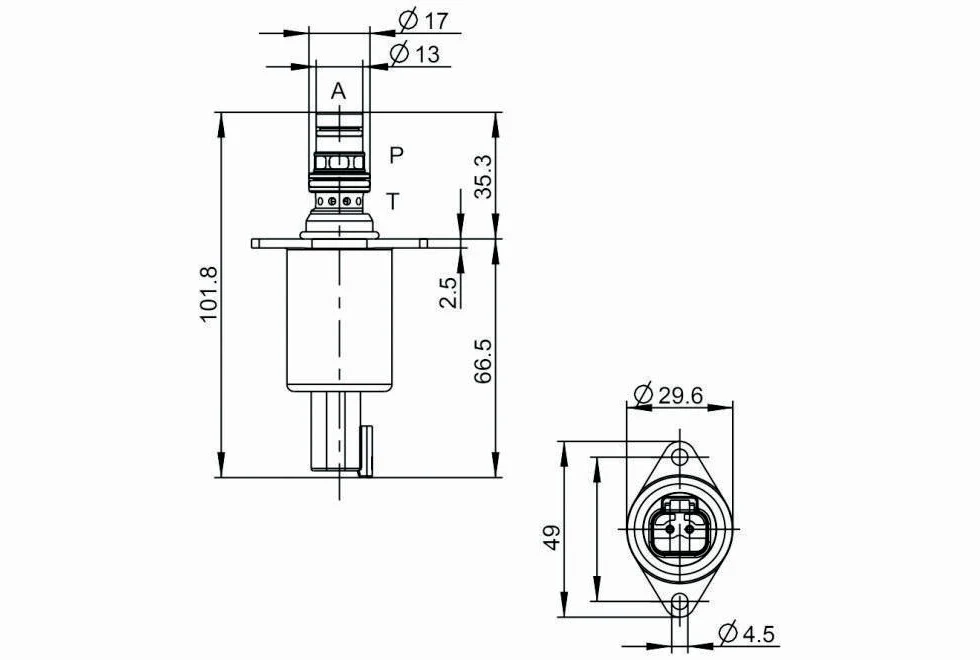

Product Outline Dimensions (in mm)
-

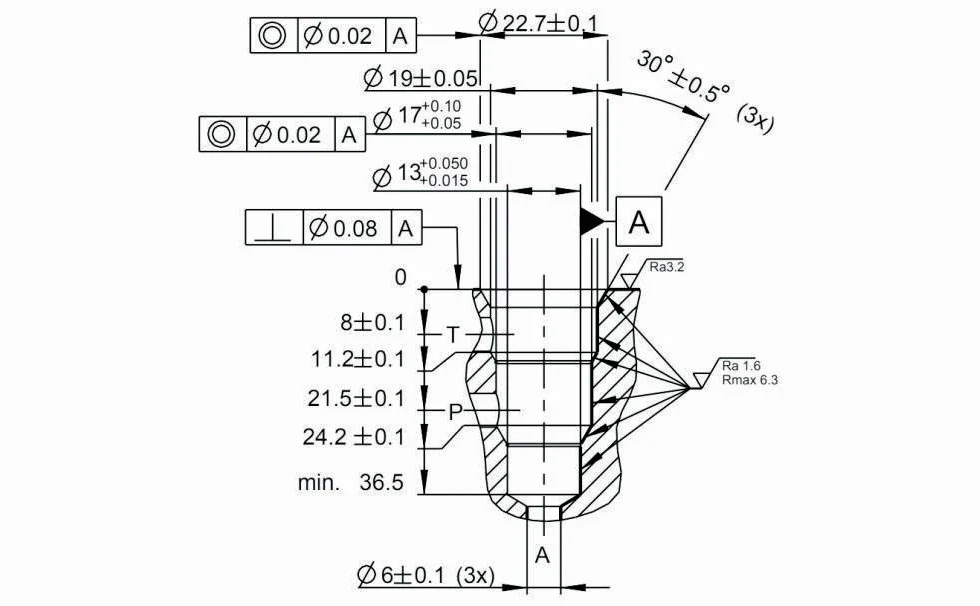

Cavity Dimentions (in mm)
