XO-Z0058
The XPPCD04 series is a high-performance electro-hydraulic proportional valve. Depending on the specific suffix model, it is primarily used in the braking systems and hydraulic pump control systems of construction machinery, agricultural machinery, and special vehicles.
Features
- Ultra-High Reliability: The XPPCD04-HP valve features an extremely low leakage rate of only 10 ml at a pressure of 250 bar, representing a leading position in the industry. This characteristic, when combined with an accumulator, allows the system to maintain pressure for an extended period even if the active pressure source fails, ensuring brakes are always available.
- Adaptability to Harsh Environments: Its rugged and durable design enables it to withstand severe operating conditions, ensuring stable performance in harsh environments.
- Precise Control: The valve achieves accurate electronic control actuation with short and repeatable response times, meeting the demands of high-precision operations.
- System Compatibility and High-Standard Manufacturing: Developed in close collaboration with original equipment manufacturers (OEMs), the valve is manufactured strictly according to automotive industry standards. This ensures a traceable and measurable production process, with a commitment to continuous improvement, delivering high quality and reliable supply.
- Supporting Future Trends: This valve series serves as a key technological foundation for advancing the digitalization, electrification, and intellectualization of construction machinery (such as autonomous operation and remote control). It offers a future-proof platform for customers investing in cutting-edge equipment.
Expand All
Collapse All
-
Overview
-
Main Functions and Applications
-
Hydraulic Parameters
-
Electrical Parameters
-

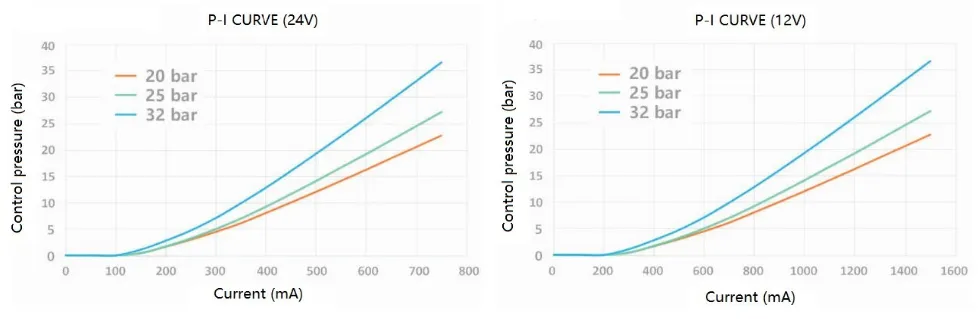

P-I (averyage characteristic)
-

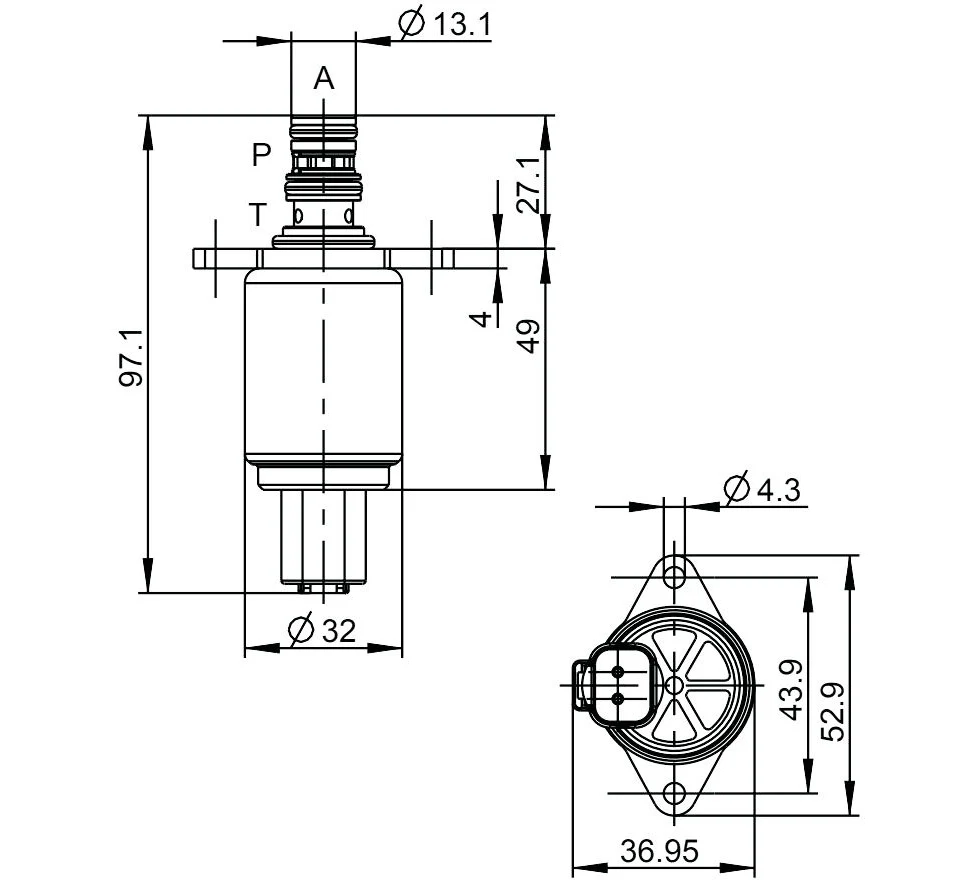

Product Outline Dimensions (in mm)
-

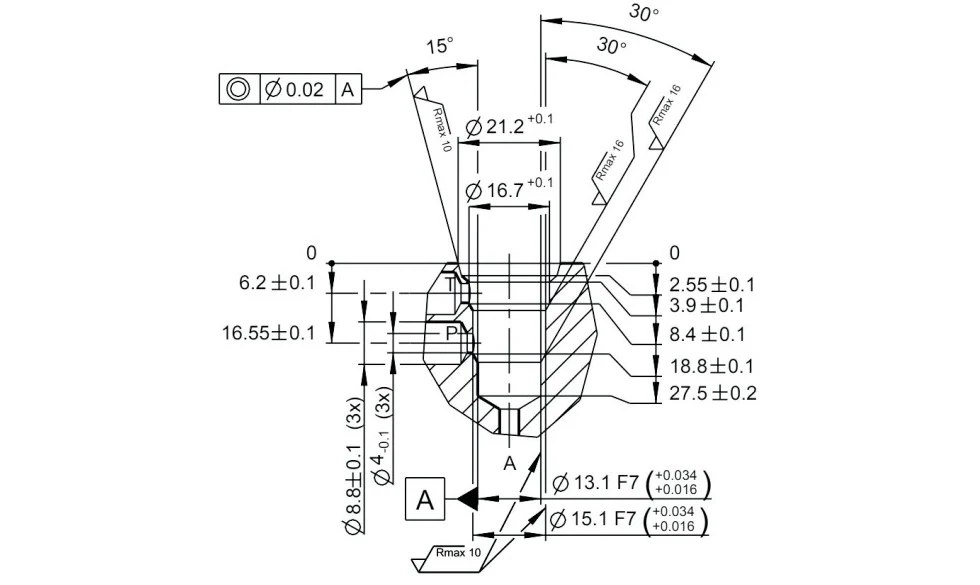

Cavity Dimentions (in mm)
