XDCSD09 Proportional Pressure Control Valve

The XDCSD09 series is a high-performance direct-acting proportional pressure control valve, designed for high-flow pilot control in mobile hydraulic systems. It provides stable and precise pressure regulation via PWM signal, with fast response, low hysteresis and ultra-low internal leakage. Built for harsh working environments, it features high protection ratings, wide operating temperature range and long service life, making it widely used in construction machinery, agricultural equipment, special vehicles and electro-hydraulic actuator systems.

Typical Applications

  • Excavators, loaders, cranes
  • Agricultural and forestry machinery
  • Special vehicles
  • High-flow pilot control circuits
  • EHA electro-hydraulic actuator systems
Expand All
Collapse All

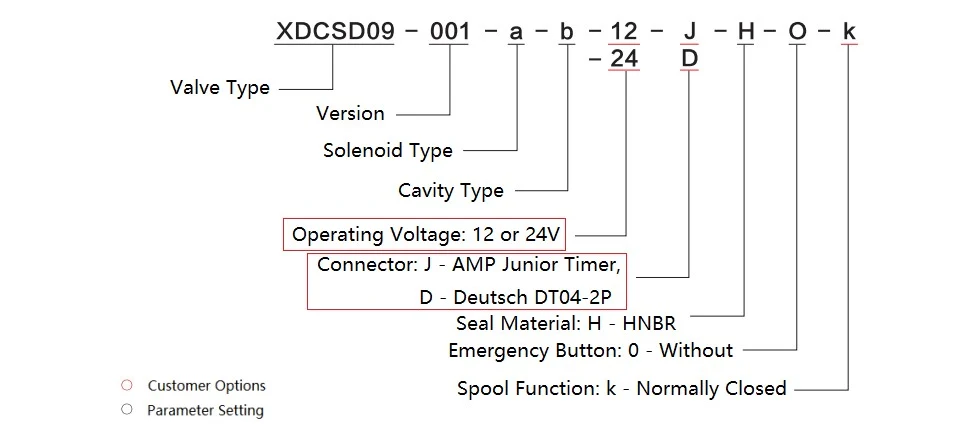

  • Overview
    icon_minus
    icon_plus
  • Hydraulic Parameters
    icon_minus
    icon_plus
  • Electrical Parameters
    icon_minus
    icon_plus

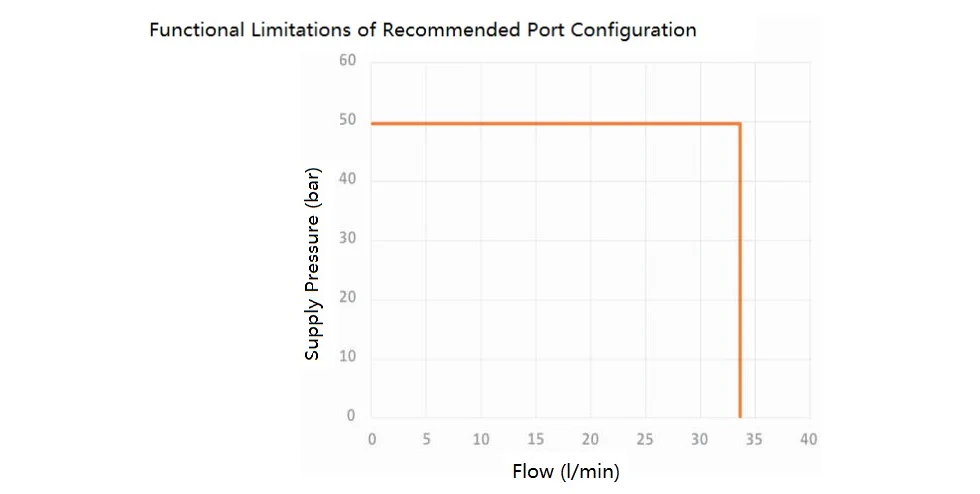

  • Functional Limitations (averyage characteristic)
    icon_minus
    icon_plus
  • Product Outline Dimensions (in mm)
    icon_minus
    icon_plus

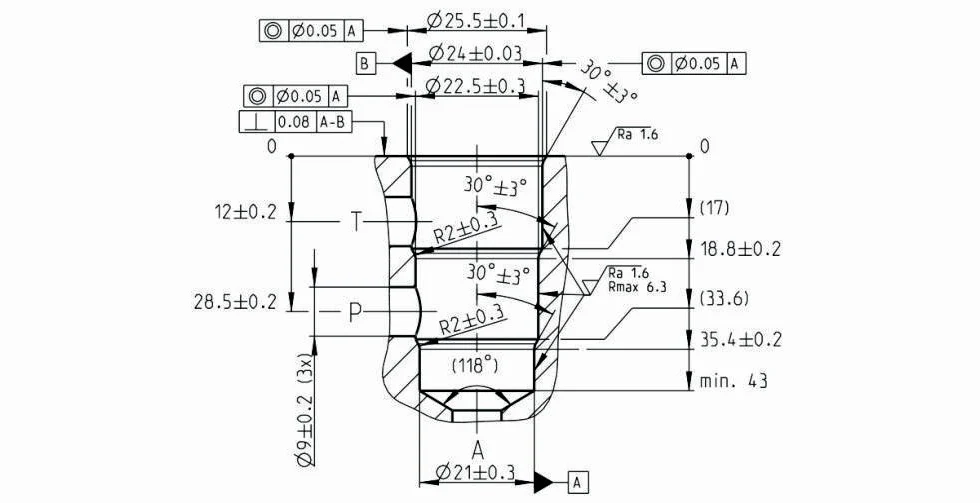

  • Cavity Dimentions (in mm)
    icon_minus
    icon_plus
